For All-In-One Aquariums Ranging from 10-30 Gallons

Footprint: 2.5 x 3.375″ | Reaction Chamber: 3 x 2″ | Height: 10″
Pump: DCAIR-200 DC

Looking for a rear-compartment protein skimmer to take your all-in-one aquarium to the next level? Look no further!

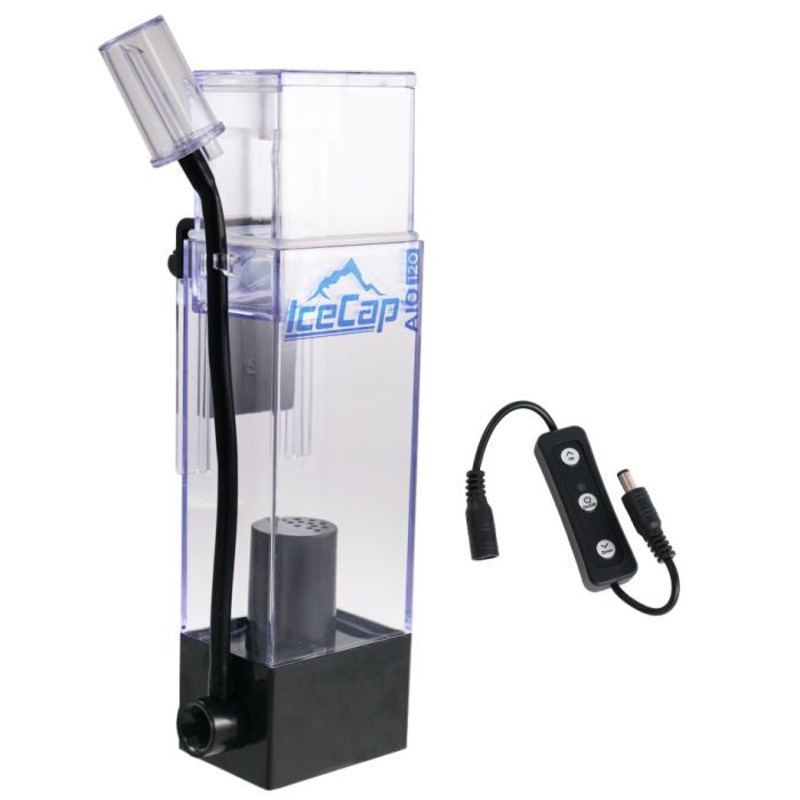

If you have an all-in-one aquarium that’s between 10-30 gallons, the IceCap AIO 120 Protein Skimmer is a great option. It has a slim profile and can be hung within the aquarium’s dedicated filter chamber. You can also adjust the skimmer’s height to get the desired amount of waste collection.

Compact & Built to Last

This product is expertly made using durable, top-notch acrylic molding. Every part of it has been designed to ensure safety in marine environments and to deliver the most advanced foam fractionation technology with superior quality.

Quiet Performance & Control

When examining the IceCap’s AIO 120 core, you’ll discover the 12V DCair 200 skimmer pump that’s intended to deliver reliable and efficient results. Adjusting the skimmer’s collection output is a breeze thanks to the inline controller, which allows you to fine-tune the pump’s speed.

Bioload Handling

The bioload of an aquarium refers to its ability to process waste in proportion to tank volume. Protein skimmers work best when properly matched with the bioload of the system.

(EXCLUDING FILTER AREA)

• Heavy – 10 Gallons
• Medium – 20 Gallons
• Light – 30 Gallons

Specific Filtration Features for All-In-One Aquariums

• Distinctive Square Body
• Adjustable Height Hanging Bracket
• Solid Construction
• Easy-to-lift Off Collection Cup
• Bubble Dispersant Chamber
• Novel Output Flow
• Efficient, Safe & Quiet DC Operation
• Disassembles for Easy Cleaning & Maintenance

AIO 120 Technical Specs

Skimmer Body: 3x2in
Footprint: 3.375in x 2.5in
Neck Size: .625in
Total Height: 10in

Pump Information

DCAIR-200 DC Pinwheel Pump
Power Consumption: 5watts
PSU Model: 1205
Output: 12V/.5A
Air Draw: 100lph / 3.5SCFH*
Water Draw: ~26gph

*Air and water results will vary depending on the aquarium setup.

WARRANTY

CoralVue, Inc. and IceCap hereby guarantee this product to be free from defects in material and workmanship for a period of:

• 1 Year

Warranty is activated on the date of purchase.

This Standard Limited Warranty applies and is limited as follows:

• To the product only as long as it remains in the possession of the original purchaser.
• To the product that has not been subject to accident, misuse or abuse.
• To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
• That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
• That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
• Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
